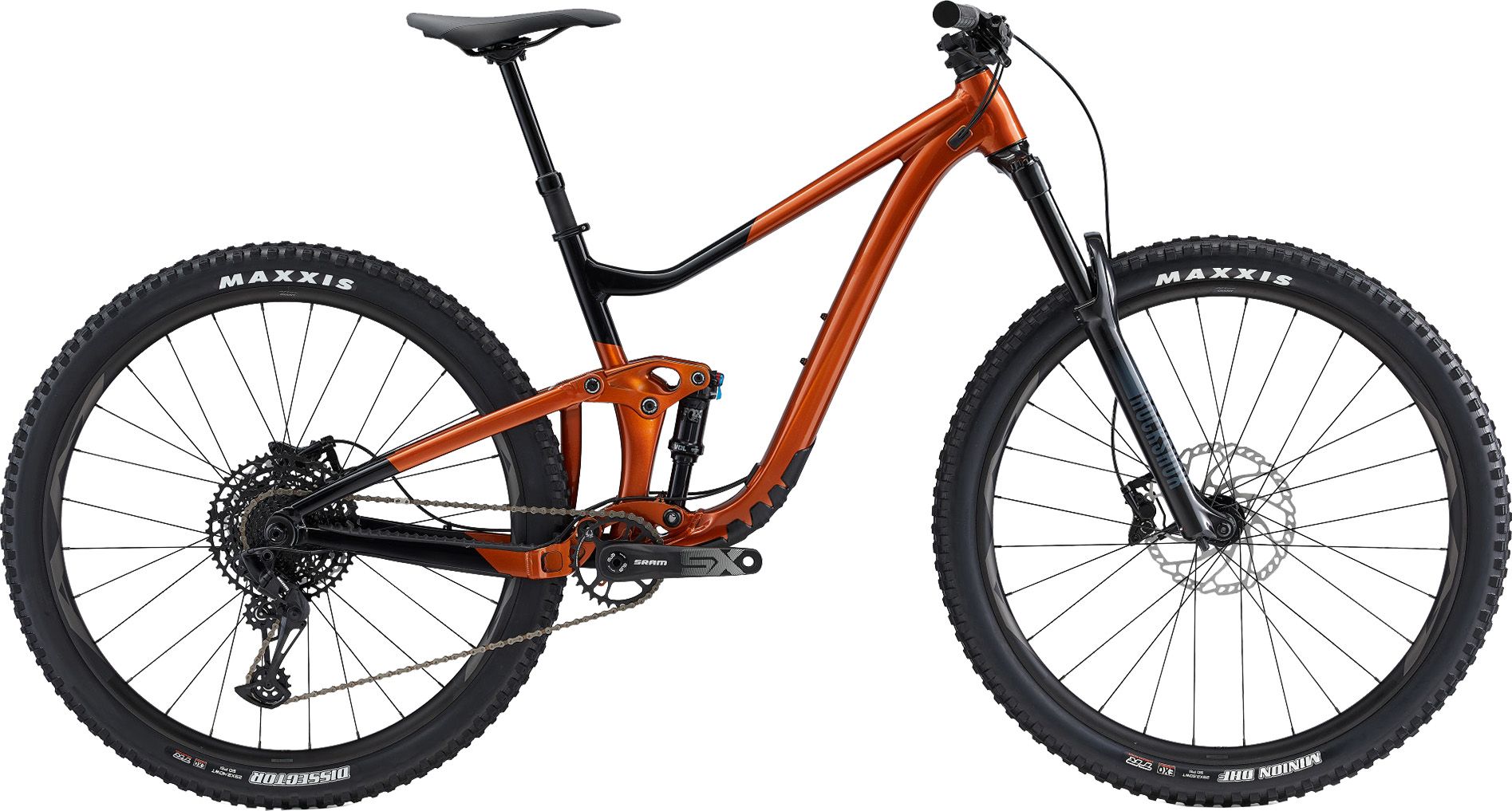

Giant Adult Trance X 29” 2 Mountain Bike

About This Item

Wheel Size

29"

Brake Type

Hydraulic Disc

Suspension

Full


Manufacturer may substitute components with components of equal or greater performance level

Features:

  • ALUXX SL Aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios
  • 29-inch wheels optimized to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs
  • Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel
  • Advanced Forged Composite upper rocker arm offers increased stiffness and strength plus lower overall frame weight
  • A flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling
  • Tubeless system provides greater traction with less rolling resistance for faster movement


NOTICE: Used Bikes and/or bikes purchased online that have been assembled are non-returnable. We strongly recommend that a professional bicycle mechanic properly assembles, repairs, and maintains the bicycle. DICK'S Sporting Goods will provide free in-store assembly service by a certified technician for any bicycle purchased on our website or in our stores (proof of purchase required). If you choose to assemble the bicycle yourself, DICK'S Sporting Goods is not responsible for injuries or damages resulting from improper assembly.

  • Brand : Giant
  • Country of Origin : Imported
  • Web ID: 24XGLMTRNCX292XXXPRF

Frameset:

Frame Sizes: S, M, L, XL
Frame: ALUXX SL-Grade Aluminum front and rear triangles, 135mm Maestro suspension, flip chip, 12x148mm thru-axle
Fork: RockShox 35 Gold RL, 150mm, 44mm offset, 15x110 Maxle Stealth, custom tuned for Giant

Drivetrain:

Shifters: SRAM SX Eagle, 1x12
Rear Derailleur: SRAM SX Eagle
Crankset: SRAM SX, 30t S:165mm, M:170mm, L:170mm, XL:170mm
Chain: SRAM SX Eagle
Bottom Bracket: SRAM DUB, press fit
Cassette: SRAM SX, 11x50

Brakes:

Brakeset: Tektro M745
Brake Levers: Tektro M745

Wheels:

Wheel Size: 29"
Rims: Giant AM 29, alloy
Tires: [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 TPI, 3C Max Terra, EXO, TR
Hubs: Alloy

Components:

Handlebar:Giant Contact TR35, 780x35mm, 20mm rise
Stem:Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Grips:Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
Seat Post:Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm
Saddle:Giant Romero

Frame Geometry:

Frame Size:SMLXL
Seat Tube Length (in.):16.916.918.319.5
Seat Tube Angle:77.2° - 77.9°77.2° - 77.9°77.2° - 77.9°77.2° - 77.9°
Top Tube Length (in.):22.3 - 22.223.5 - 23.424.8 - 24.725.8 - 25.7
Head Tube Length (in.):3.73.94.34.7
Head Tube Angle:65.5° - 66.2°65.5° - 66.2°65.5° - 66.2°65.5° - 66.2°
Wheelbase (in.):46.247.448.849.9
Stack (in.):24.324.424.825.2
Reach (in.):16.81819.120.1
Stand Over Height (in.):28.928.729.730.6
Stem Length (in.):1.61.622
Crank Length (in.):6.56.76.76.7
